60V series high-power bidirectional DCDC (water cooled)
Product Features
1. Fully digital design, with bidirectional conversion of voltage up and down.
2. The full load efficiency can reach up to 99%.
Application Scenario
1. It is suitable for charging and discharging fuel cells, Flow battery, lithium batteries, lead-acid batteries, etc.
2. Wind power, photovoltaic and other energy storage applications.
3. Base station backup power supply.

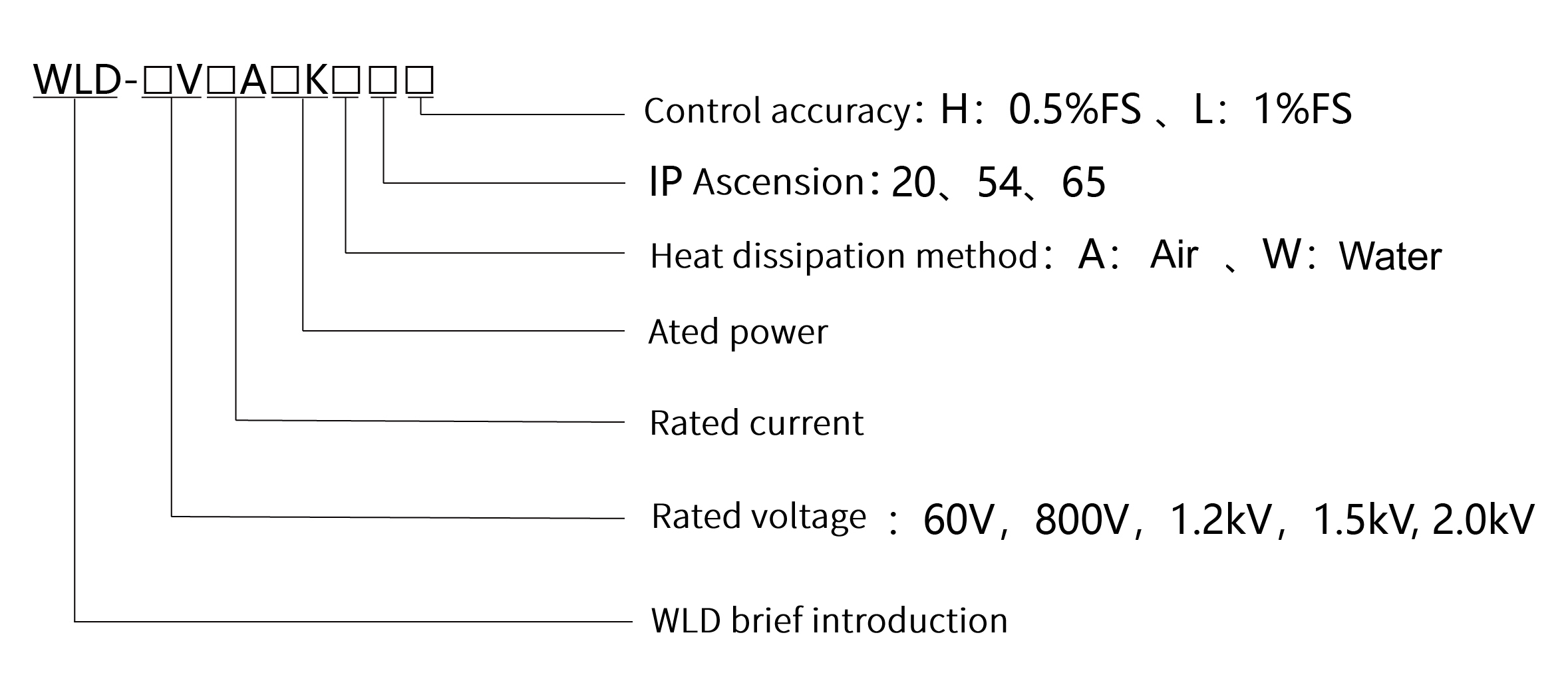

Model Description
Product Specification Model Parameter Table
Symbol Comment：●forced air cooling ●water-cooling ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃，45℃ The above needs to be derated for use ◆injection temperature<30℃，Outlet temperature<80℃
|
product number
|
Model
|
voltage
Vdc
|
current
A
|
maximum power
KW
|
RS485
thoroughfare
|
CAN
thoroughfare
|
accuracy
FS
|
Heat dissipation method
|
protection grade IP
|
size(D*W*H) mm
|
weight
Kg
|
|
104
|
WLD-060V33A2KW65L
|
0~60
|
0~33
|
2
|
1
|
1
|
1%
|
●
|
65
|
300*100*88
|
4
|
|
105
|
WLD-060V66A4KW65L
|
0~66
|
4
|
●
|
65
|
300*165*88
|
5
|
|
106
|
WLD-060V100A6KW65L
|
0~100
|
6
|
●
|
65
|
300*200*88
|
6
|
|
|
Other models
|
|
|
Customizable according to customer needs
|
|
|
Note: Dimensions do not include water nozzles and wiring terminals
|
Remarks:
Other models can be customized according to customer needs
The size does not include water nozzles and wiring terminals
Outline dimensions and functional annotation reference instructions
