Product features:
1, three-level design, small volume and high power density;
2, small harmonics, high efficiency;
3, support and off-grid switching;
4, support three-phase 100% unbalanced operation with load;
5, support DC side stable bus function;
6, support AC side PQ mode operation;
7, modular design, multi-machine parallel, convenient system integration and system follow-up operation and maintenance;
8, perfect protection function;
Application scenario:
1. Mobile energy storage
The mobile energy storage rescue system consists of PCS, energy storage battery and straight charging pile. It can recharge new energy electric vehicles, and it can also provide power rescue for important places and emergency sites.
2, cut peak fill valley, transformer capacity
The energy storage system consists of PCS and energy storage battery. When the power supply valley is in the grid, the power is collected from the grid and stored in the battery; During the peak of power consumption in the grid, the battery is discharged to the grid by the load consumption, reducing the power from the grid. Thus to achieve the role of peak cutting and valley filling, saving electricity costs. In addition, PCS reduces the power taken from the grid and reduces the power transformer load when releasing power to the grid.
3. Ac/DC microgrid
PCS, DCDC, energy storage batteries, photovoltaic, wind power and other new energy are combined to form a microgrid, and the new energy, energy storage batteries, and power grid are rationally configured to achieve flexible and efficient use of distributed power sources.
4, multi-port energy router
By PCS, DCDC, energy storage battery, photovoltaic, wind power and other new energy and load according to the needs of customers into a multi-port energy router. Multi-port energy router can access a variety of different voltage levels of load, can be easily incorporated into a variety of distributed energy, each port can plug and play, convenient and fast.
Model description:

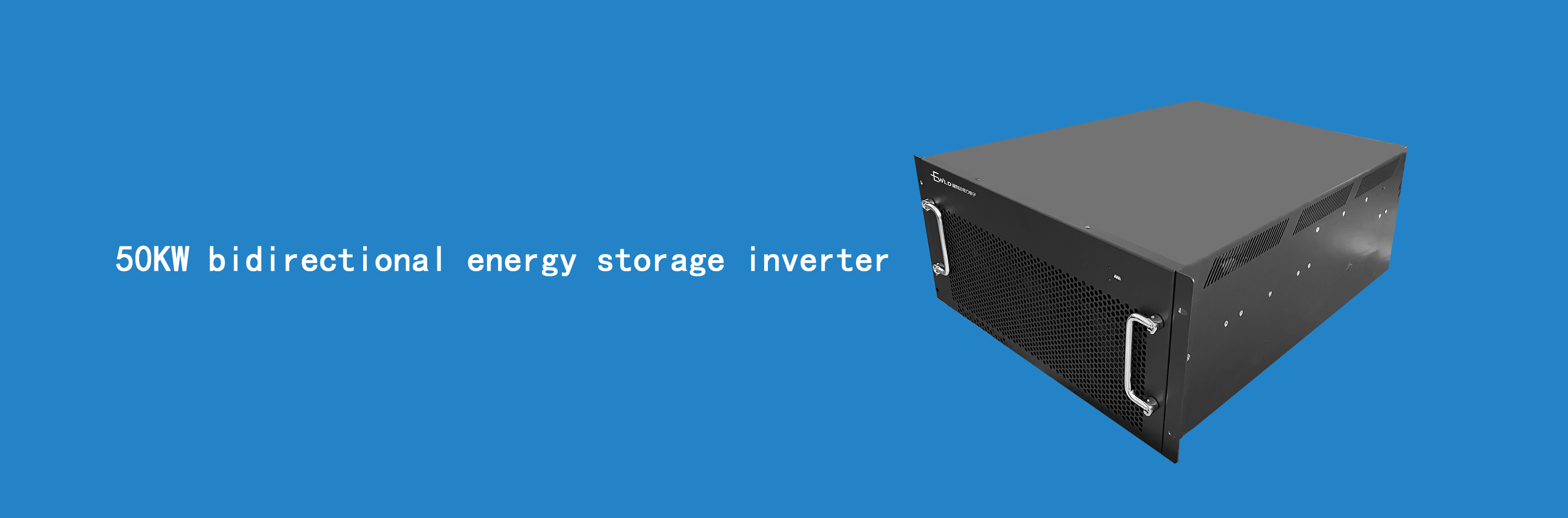

WLD-PCS-50K
WLD: Wenlida Power Electronics abbreviation
PCS: bidirectional energy storage inverter
50K: Power 50KW
Product specification model parameter table:
|
Model number
|
WLD-PCS-50K
|
|
Dc side parameter
|
Dc voltage range
|
650~800Vdc
|
|
Dc current range
|
0 to 75A/ branch
|
|
by-pass
|
1
|
|
Ac grid connection parameters
|
Output line system
|
3W+N
|
|
Rated power
|
50KW
|
|
Rated voltage
|
400Vac
|
|
Rated current
|
75A
|
|
Voltage range
|
-10%～+10%
|
|
Rated frequency
|
50Hz
|
|
Frequency range
|
±1.5Hz
|
|
Power factor
|
0.99 lead ~0.99 lag
|
|
Output harmonic
|
≤3% (rated power)
|
|
Ac off-network parameters
|
Output line system
|
3W+N+PE
|
|
Rated power
|
50KW
|
|
Rated voltage
|
400Vac
|
|
Rated frequency
|
50Hz
|
|
Rated current
|
75A
|
|
Voltage accuracy
|
1%
|
|
Frequency accuracy
|
0.5Hz
|
|
Output voltage harmonics
|
3%@ linear full load
|
|
Unbalanced load capacity
|
100%(Balance module required)
|
|
Overload capacity
|
≤105% : long-term operation;
(105,110) : Running time ≥10 minutes
≥110% : Stops running
|
|
environment
|
Operating temperature
|
-20℃ ~ 55℃ (derated above 45℃)
|
|
Storage temperature
|
-40℃～70℃
|
|
Relative humidity
|
0% RH to 95% RH, no condensation, no icing
|
|
Working altitude
|
6000 m (1% derating per 100 m above 3000 m)
|
|
noise
|
＜55dB
|
|
Communication and management
|
CAN communication interface
|
Yes, CAN2.0
|
|
RS485 communication interface
|
Yes, Modbus RTU
|
|
Isolation mode
|
non-isolated
|
|
Class of protection
|
IP20, internal three-guard treatment
|
|
Cooling mode
|
Intelligent air cooling
|
|
Protection function
|
Ac over voltage, over current, over temperature, island protection, DC side overvoltage, over current, short circuit, etc
|
|
Mechanical dimension
|
dimension
|
600D*482W*220H（mm）
|
|
weight
|
≤40Kg
|
