SIC series high-power bidirectional DCDC (water cooled)

Product Features

1. Up and down pressure bidirectional transformation.
2. Small size, high-frequency reduces the volume of magnetic components and capacitors, and the entire machine with the same power is 1/2 smaller than ordinary IGBT models.
3. Lightweight, the overall weight of the same power is only one-third of that of ordinary IGBT models.


Application Scenario

1. Energy storage of fuel cell, Flow battery, lithium battery, etc.
2. Cascade utilization of retired batteries.
3. Application of optical storage and charging, AC/DC hybrid microgrid.

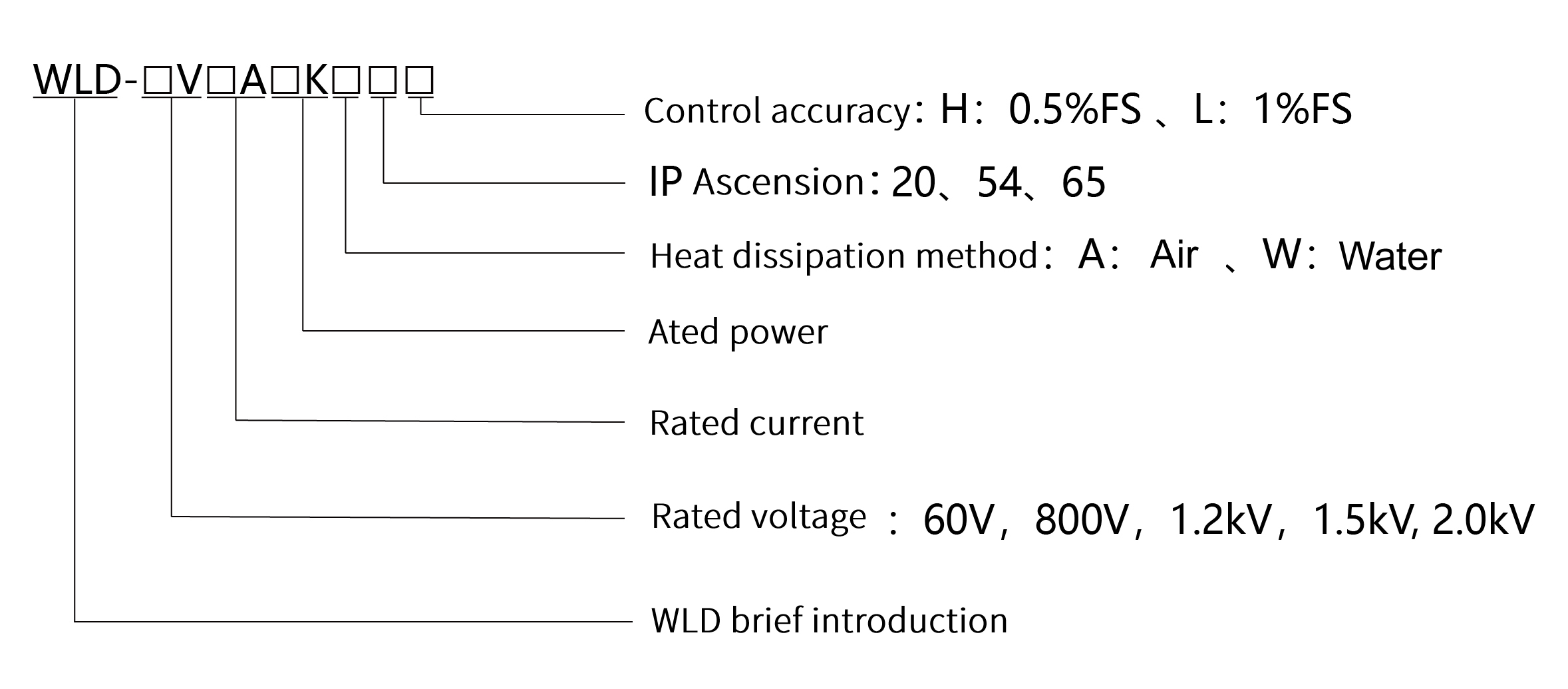

Model Description



Product Specification Model Parameter Table

Symbol Comment:●forced air cooling  water-cooling   ★ ±1%FS   ±0.5%FS     ■≤5ms    ≤100ms     ◆-20℃ ~ +45℃,45℃The above needs to be derated for use      injection temperature<30℃,Outlet temperature<80℃

产品编号



电压

Vdc

电流

A

最大功率

KW

RS485

通道

CAN

通道

精度

FS

散热方式

防护等级

尺寸(D*W*H) mm

重量

Kg

603

WLD-150V250A20KW65HSIC

0~150

0~250

20

2

2

0.5%

65

450*300*132

10



Other models

Customizable according to customer needs Note: Dimensions do not include faucets and wiring terminals


Remarks:
Other models can be customized according to customer needs
The size does not include water nozzles and wiring terminals

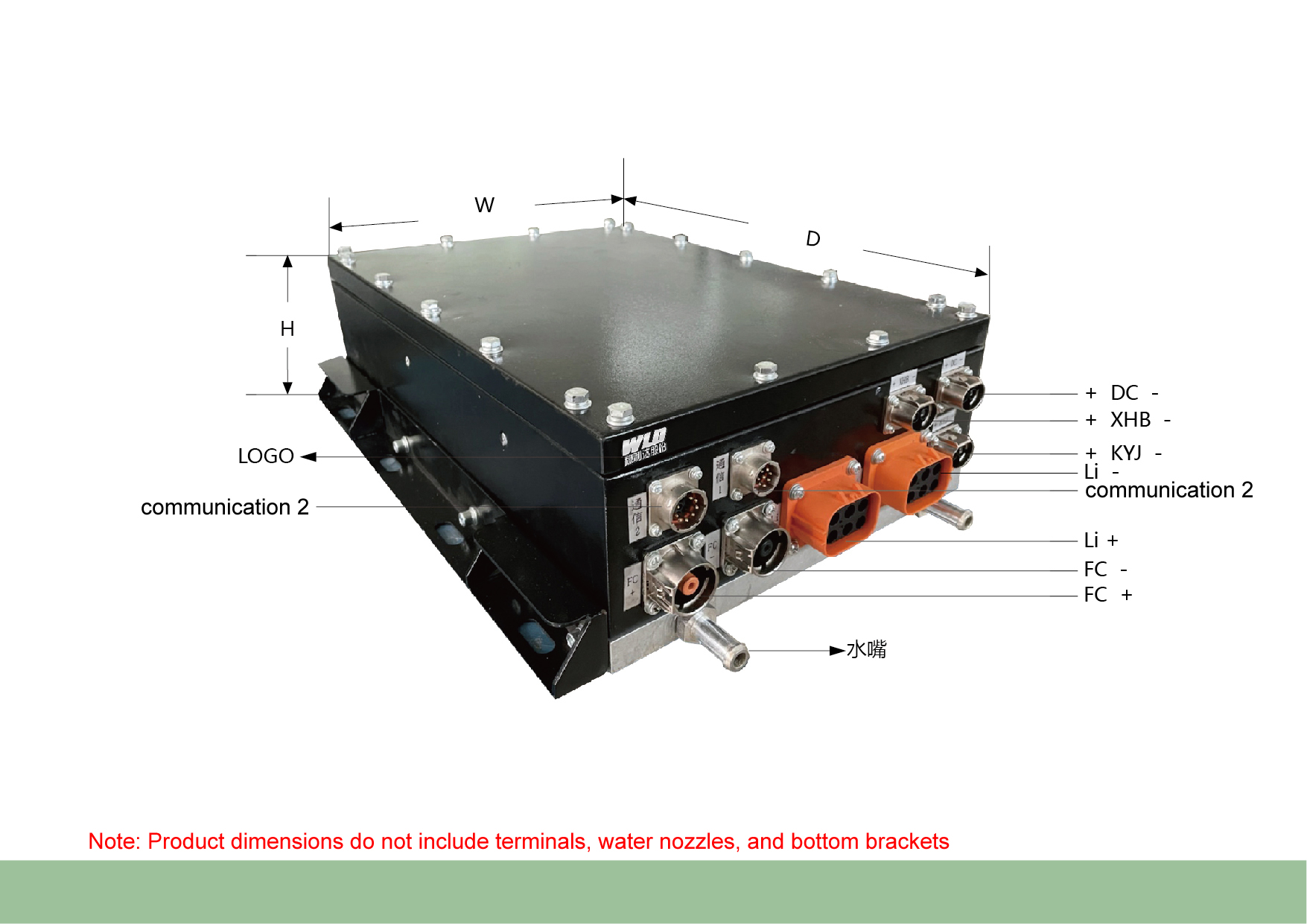

         Outline dimensions and functional annotation reference instructions
