2000V系列大功率双向双向DCDC

2000V series high-power bidirectional DCDC

产品特点Product Features

1、全数字化三电平设计，满载效率可高达 95%。

Fully digital three-level design, with a full load efficiency of up to 95%.

2、多机并联使用，满足大功率和大电流需求。

Multiple machines are used in parallel to meet high-power and high current requirements.

应用场景Application Scenario

1、光储充、高电压平台储能应用。

Optical storage and charging, high voltage platform energy storage applications.

2、电力支撑、直流UPS。

Power support, DC UPS.

3、地铁、高铁等电力机车能量回收系统。

Metro, high-speed rail and other Electric locomotive energy recovery systems.

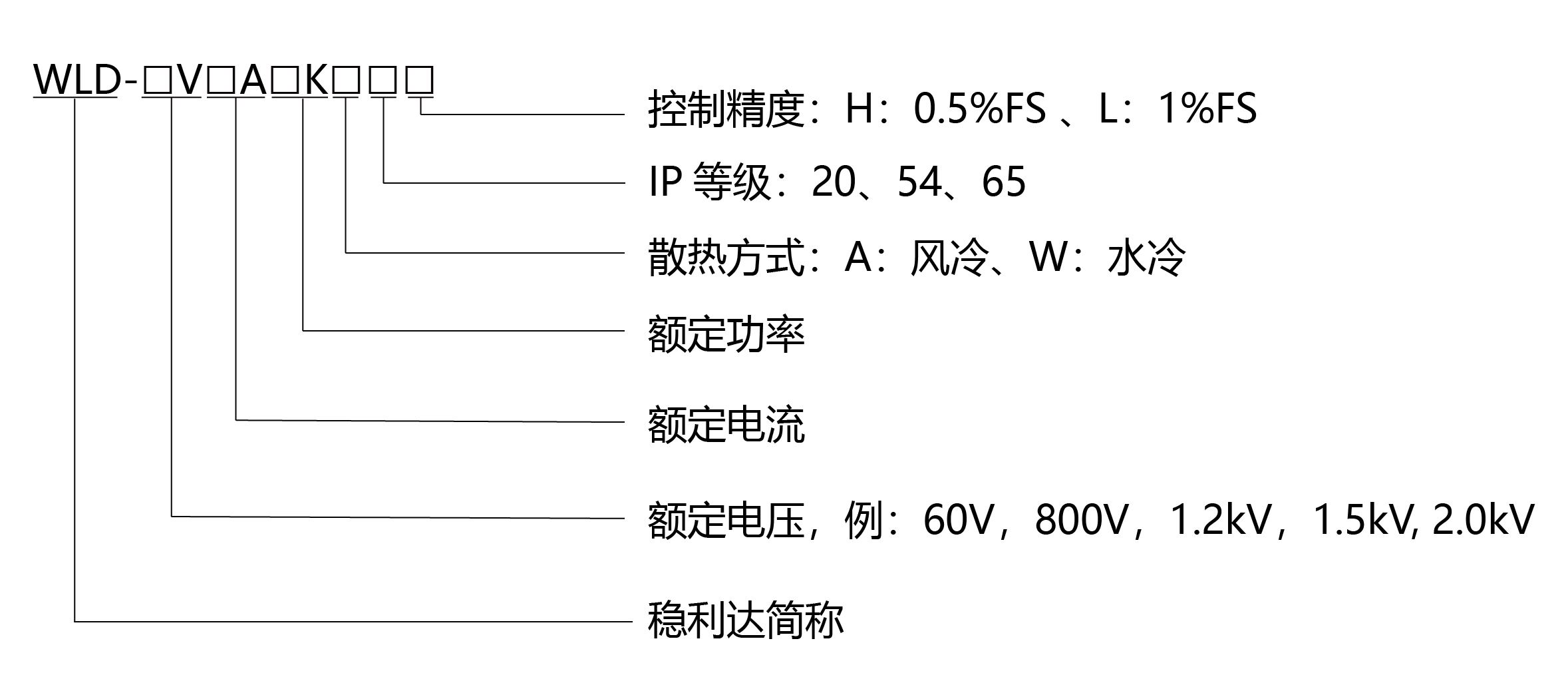

型号说明Model Description

产品规格型号参数表Product Specification Model Parameter Table

符号注释：●风冷  ●水冷   ★ ±1%FS   ★±0.5%FS     ■≤5ms    ■≤100ms     ◆-20℃ ~ +45℃，45℃以上需降额使用      ◆进水口温度<30℃，出水口温度<80℃

Symbol Comment：●forced air cooling  ●water-cooling   ★ ±1%FS   ★±0.5%FS     ■≤5ms    ■≤100ms     ◆-20℃ ~ +45℃，45℃ The above needs to be derated for use      ◆injection temperature<30℃，Outlet temperature<80℃
