60V系列大功率双向DCDC(风冷)
60V series high-power bidirectional DCDC (air-cooled)
产品特点:Product Features
1、全数字化设计,升降压双向变换。
Fully digital design, with bidirectional conversion of voltage up and down.
2、满载效率可高达 99% 。
Full load efficiency can reach up to 99%
应用场景:Application Scenario
1、适用燃料电池、液流电池、锂电池、铅酸电池等充放电。
It is suitable for charging and discharging fuel cells, Flow battery, lithium batteries, lead-acid batteries, etc.
2、风电、光伏等储能应用。
Wind power, photovoltaic and other energy storage applications.
3、基站备电电源。
Base station backup power supply.

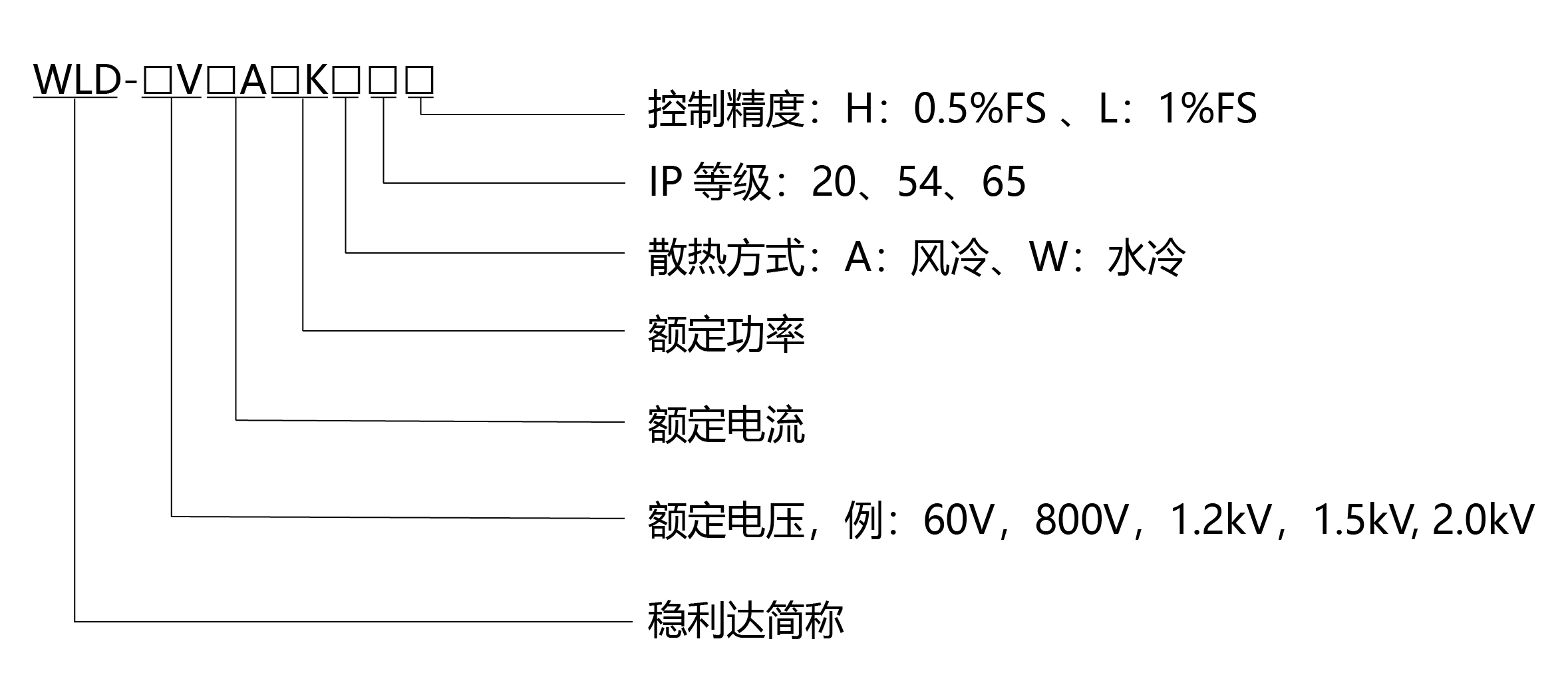

型号说明:Model Description
产品规格型号参数表:Product Specification Model Parameter Table
符号注释:●风冷 ●水冷 ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃,45℃以上需降额使用 ◆进水口温度<30℃,出水口温度<80℃
Symbol Comment:●forced air cooling ●water-cooling ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃,45℃ The above needs to be derated for use ◆injection temperature<30℃,Outlet temperature<80℃
产品编号
型 号
电压
Vdc
电流
A
最大功率
KW
RS485
通道
CAN
通道
精度
FS
散热方式
防护等级IP
尺寸(D*W*H) mm
重量
Kg
101
WLD-060V33A2KA20L
0~60
0~33
2
1
1
1%
20
300*100*88
2
102
WLD-060V66A4KA20L
0~66
4
●
20
300*165*88
3
103
WLD-060V100A6KA20L
0~100
6
●
20
300*200*88
4
其他型号
可根据客户需求定制

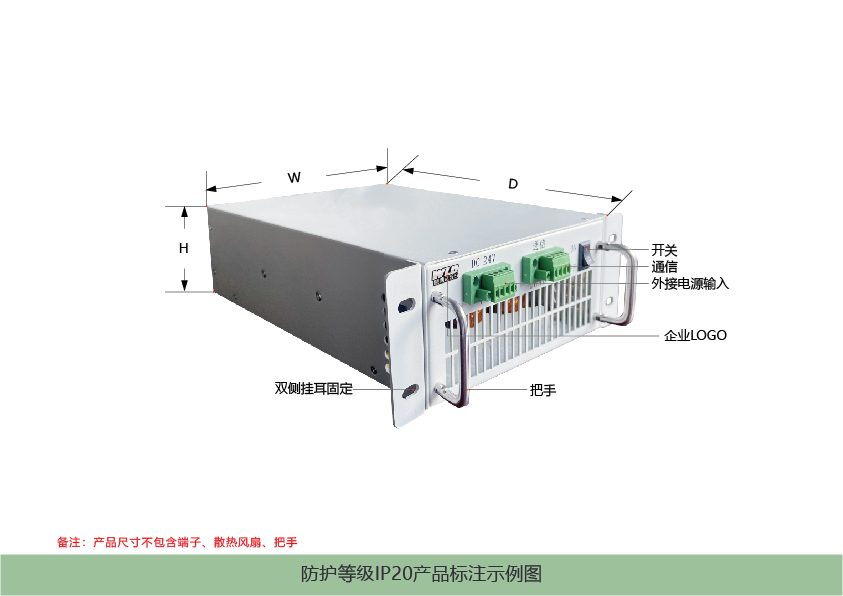

备注:尺寸不包含水嘴、接线端子
●
