SIC系列大功率双向DCDC(水冷)
SiC Series High-Power Bidirectional DC/DC (Water-Cooled)
产品特点:Product Features
1、升降压型双向变换。
Up and down pressure bidirectional transformation.
2、体积小,高频化减小磁性元件体积和电容体积,相同功率整机比普通IGBT 机型小 1/2。
Small size, high-frequency reduces the volume of magnetic components and capacitors, and the entire machine with the same power is 1/2 smaller than ordinary IGBT models.
3、重量轻,相同功率整机重量仅为普通IGBT 机型 1/3。
Lightweight, the overall weight of the same power is only one-third of that of ordinary IGBT models.
应用场景:Application Scenario
1、燃料电池、液流电池、锂电池等储能。
Energy storage of fuel cell, Flow battery, lithium battery, etc.
2、退役电池的梯次利用。
Cascade utilization of retired batteries.
3、光储充、交直流混合微网应用。
Application of optical storage and charging, AC/DC hybrid microgrid.

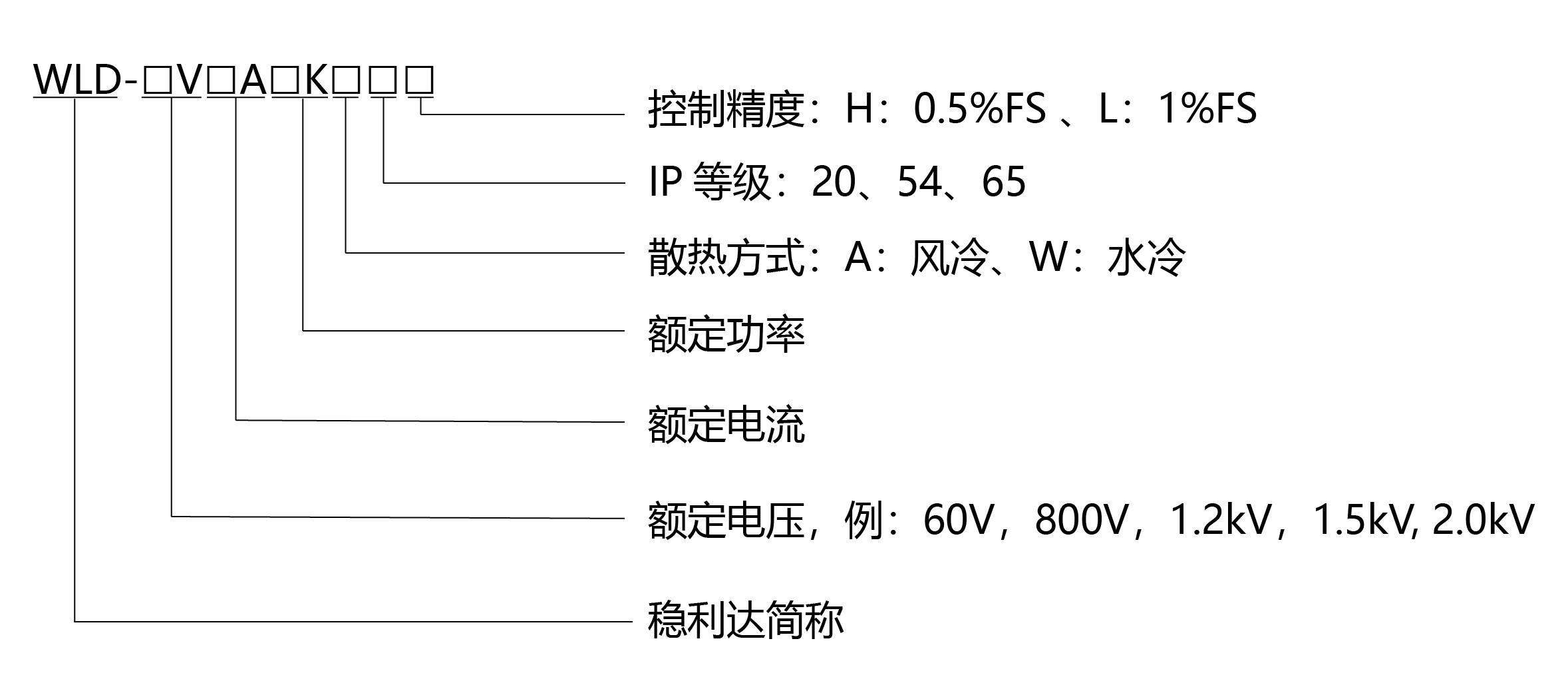

型号说明:Model Description
产品规格型号参数表:Product Specification Model Parameter Table
符号注释:●风冷 ●水冷 ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃,45℃以上需降额使用 ◆进水口温度<30℃,出水口温度<80℃
Symbol Comment:●forced air cooling ●water-cooling ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃,45℃The above needs to be derated for use ◆injection temperature<30℃,Outlet temperature<80℃
产品编号
型 号
电压
Vdc
电流
A
最大功率
KW
RS485
通道
CAN
通道
精度
FS
散热方式
防护等级

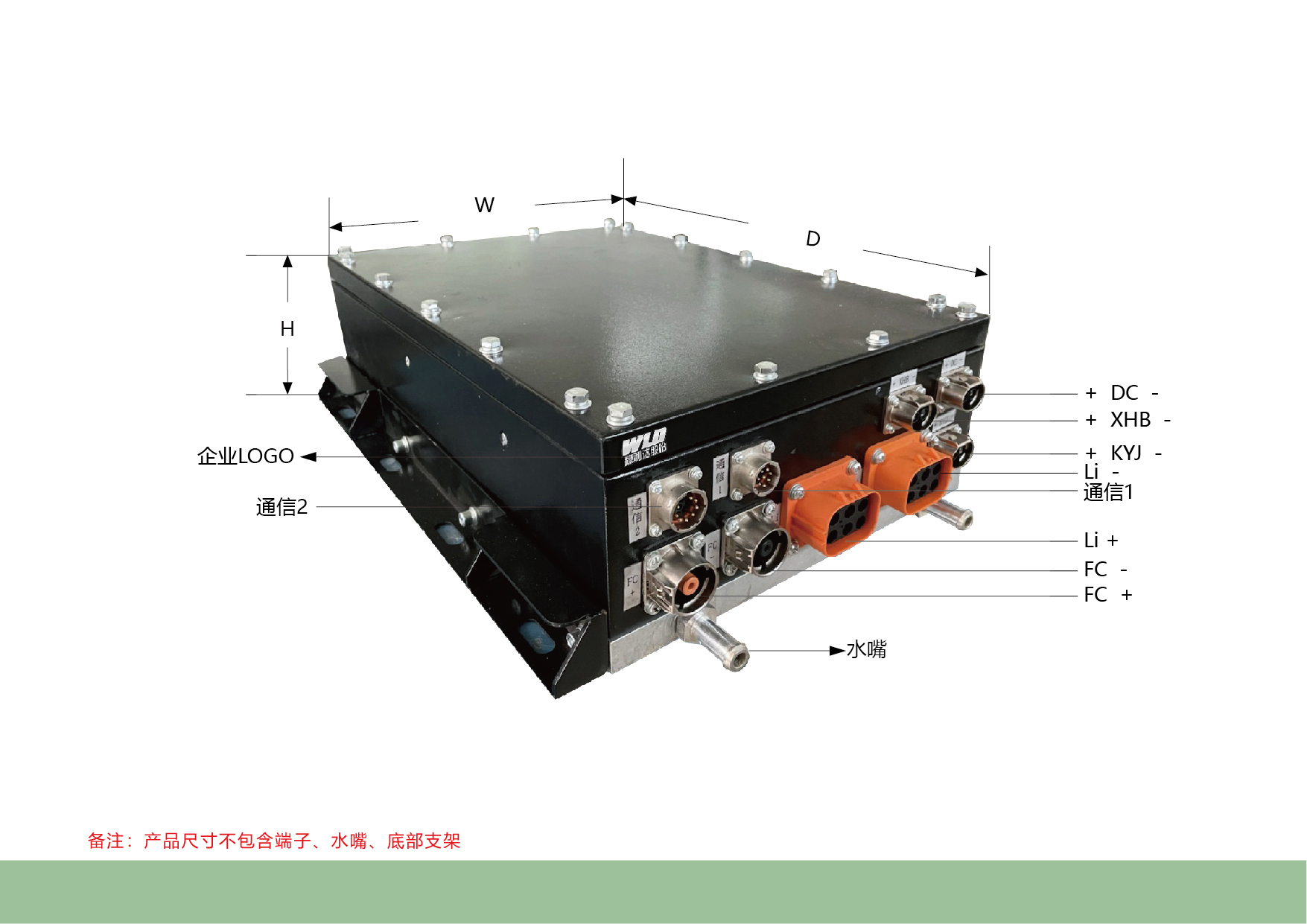

尺寸(D*W*H) mm
重量
Kg
603
WLD-150V250A20KW65HSIC
0~150
0~250
20
2
2
0.5%
●
65
450*300*132
10
其他型号
可根据客户需求定制 备注:尺寸不包含水嘴、接线端子
