1200V系列大功率双向DCDC(水冷)
1200V series high-power bidirectional DCDC (water cooled)
产品特点:Product Features
1、全数字化设计,满载效率可高达 98%。
Fully digital design, with a full load efficiency of up to 98%.
2、多机并联使用,满足大功率和大电流需求。
Multiple machines are used in parallel to meet high-power and high current requirements.
应用场景:Application Scenario
1、燃料电池、液流电池、锂电池等储能。
Energy storage of fuel cell, Flow battery, lithium battery, etc.
2、退役电池的梯次利用。
Cascade utilization of retired batteries.
3、电力支撑、直流UPS。
Power support, DC UPS.
4、光储充、交直流混合微网应用。
Application of optical storage and charging, AC/DC hybrid microgrid.

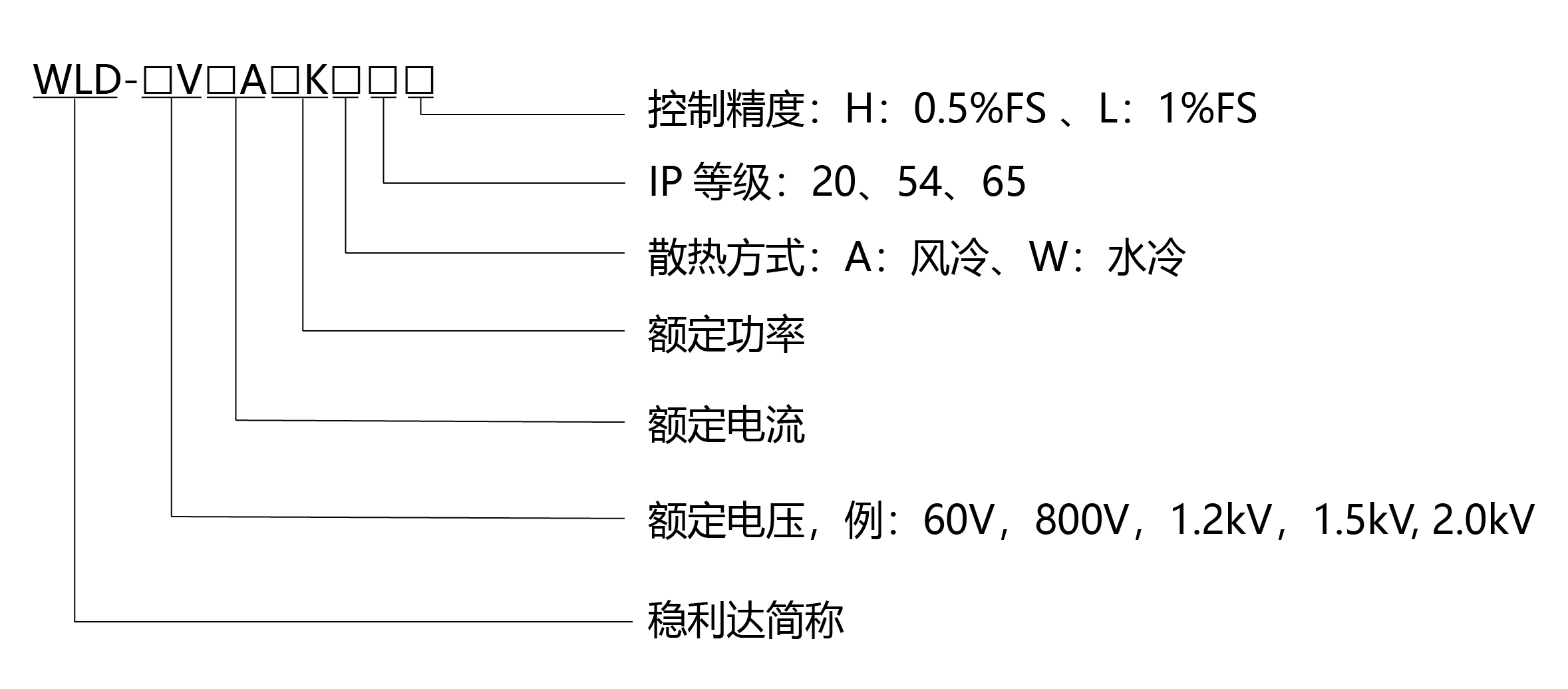

型号说明:Model Description
产品规格型号参数表:Product Specification Model Parameter Table
符号注释:●风冷 ●水冷 ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃,45℃以上需降额使用 ◆进水口温度<30℃,出水口温度<80℃
Symbol Comment:●forced air cooling ●water-cooling ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃,45℃ The above needs to be derated for use ◆injection temperature<30℃,Outlet temperature<80℃
产品编号
型 号
电压
Vdc
电流
A
最大功率
KW
RS485
通道
CAN
通道
精度
FS
散热方式
防护等级IP
尺寸(D*W*H) mm
重量
Kg
307
WLD-1.2kV100A60KW65L
0-1200
0~100
60
1
1
1%
●
65
460*400*200
45
308

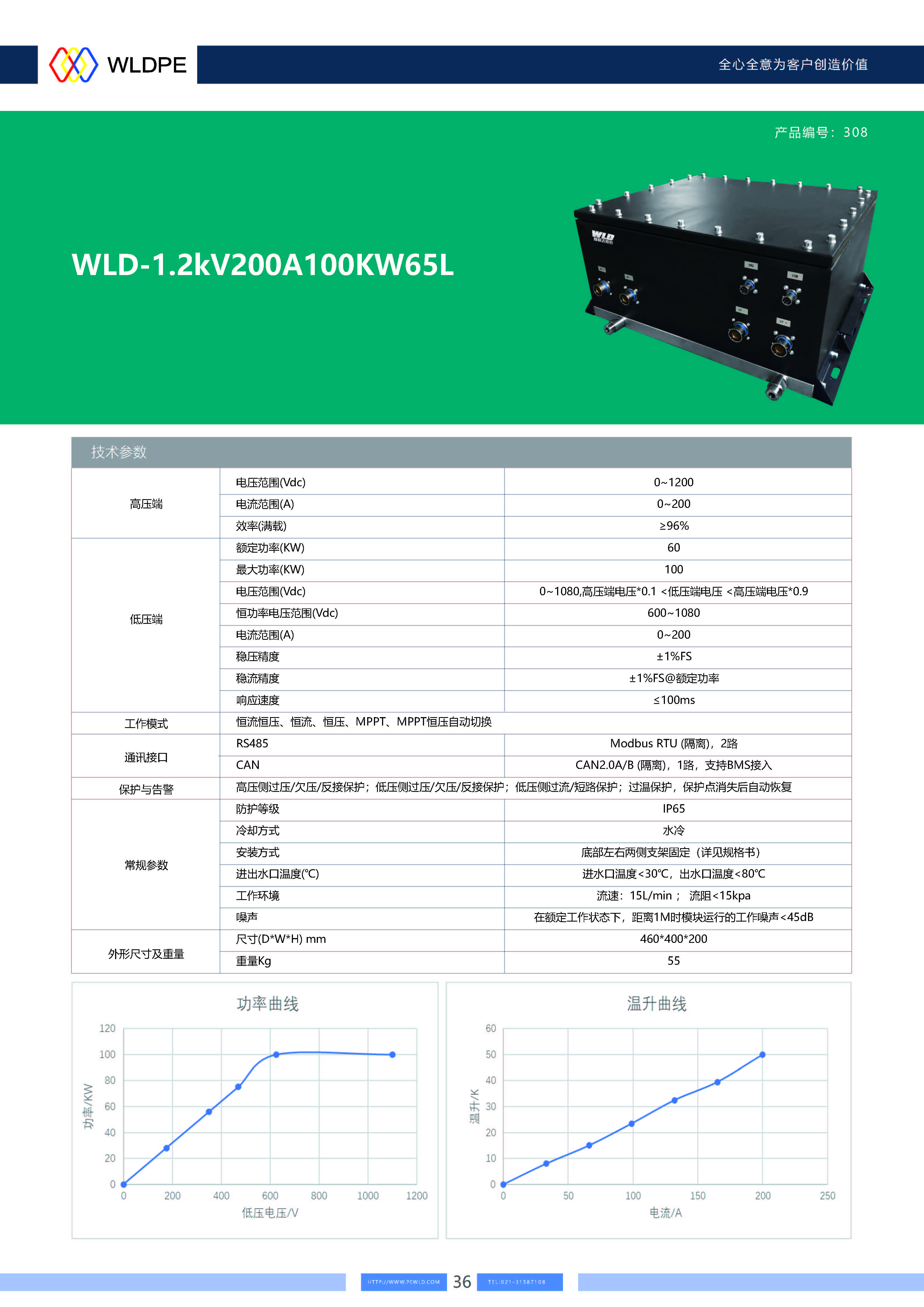

WLD-1.2kV200A100KW65L
0~200
100
1
1
1%
●
65
460*400*200
45
309
WLD-1.2kV100A60KW65H
0~100
60
2
2
0.5%
●
65
460*400*200
45
310
WLD-1.2kV200A100KW65H
0~200
100
2
2
0.5%
●
65
460*400*200
45
311

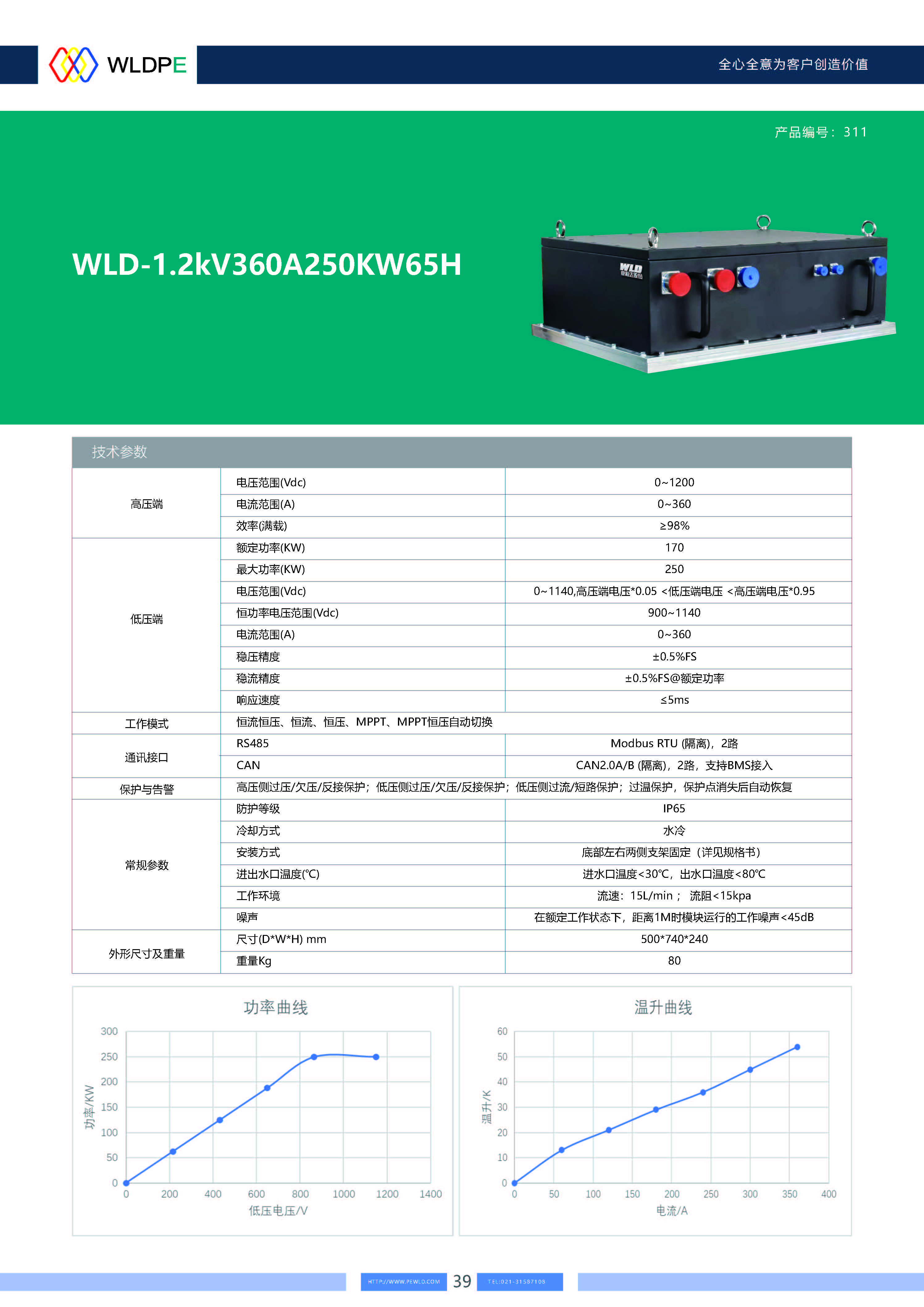

WLD-1.2kV360A250KW65H
0~360
250
2
2
0.5%
●
65
500*740*240
80
其他型号
可根据客户要的参数定制

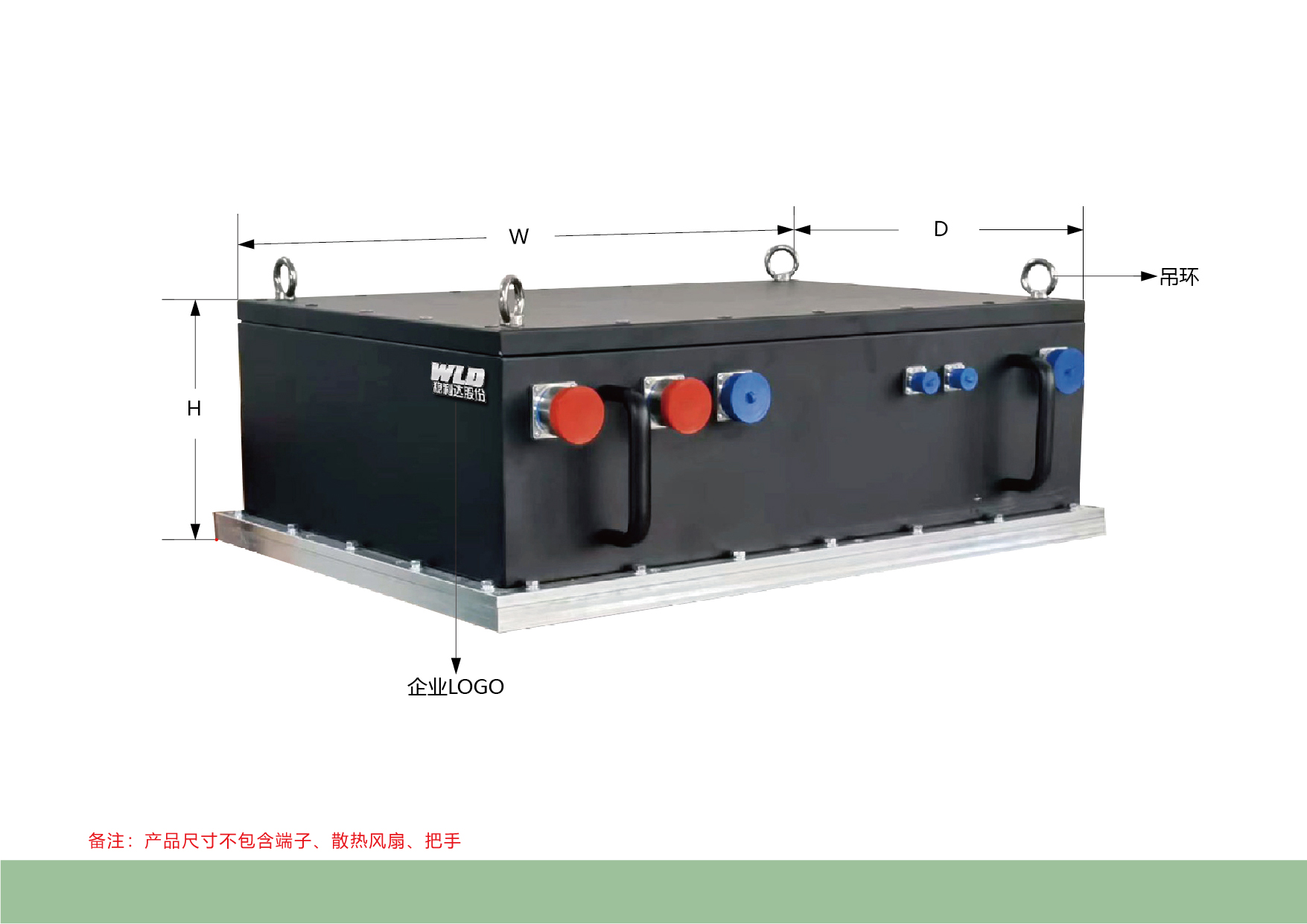

备注:尺寸不包含水嘴、接线端子
